Description
Features:
● 1. All aluminum alloy structure, no fan design
● 2. Support Intel Core i3-1215U/i5-1235U/i7-1255U, 6/10-CORE
● 3. Supports 3 HDMI high-definition display interfaces and synchronous/asynchronous triple display
● 4. Support Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc.
● 5. High performance mainboard, 7×24 continuous operation
Specification:
| Mainboard | CPU | Intel Core i3-1215U/i5-1235U/i7-1255U, 6-10-CORE | ||
| RAM | 4GB/8GB/16GB/32GB | |||
| SSD | 32GB/64GB/128GB/256GB/512GB/1TB | |||
| BIOS | AMI EFI BIOS | |||
| Display Chips | Intel(R) UHD Graphics | |||
| Power Supply | Working voltage | DC12V | ||
| Enclosure | Material | Aluminum Alloy | ||
| Color | Black | |||
| VESA mounting | 75x75mm | |||
| IP grade | / | |||
| Environment | Temperature | Operating: 0℃ ～ +40℃ // -20°C to 50°C | ||
| Relative humidity | 5%~95% @ 30° C, non-condensing | |||
| Dimension | Net weight | 1.1KG | ||
| Gross weight | 1.5KG | |||

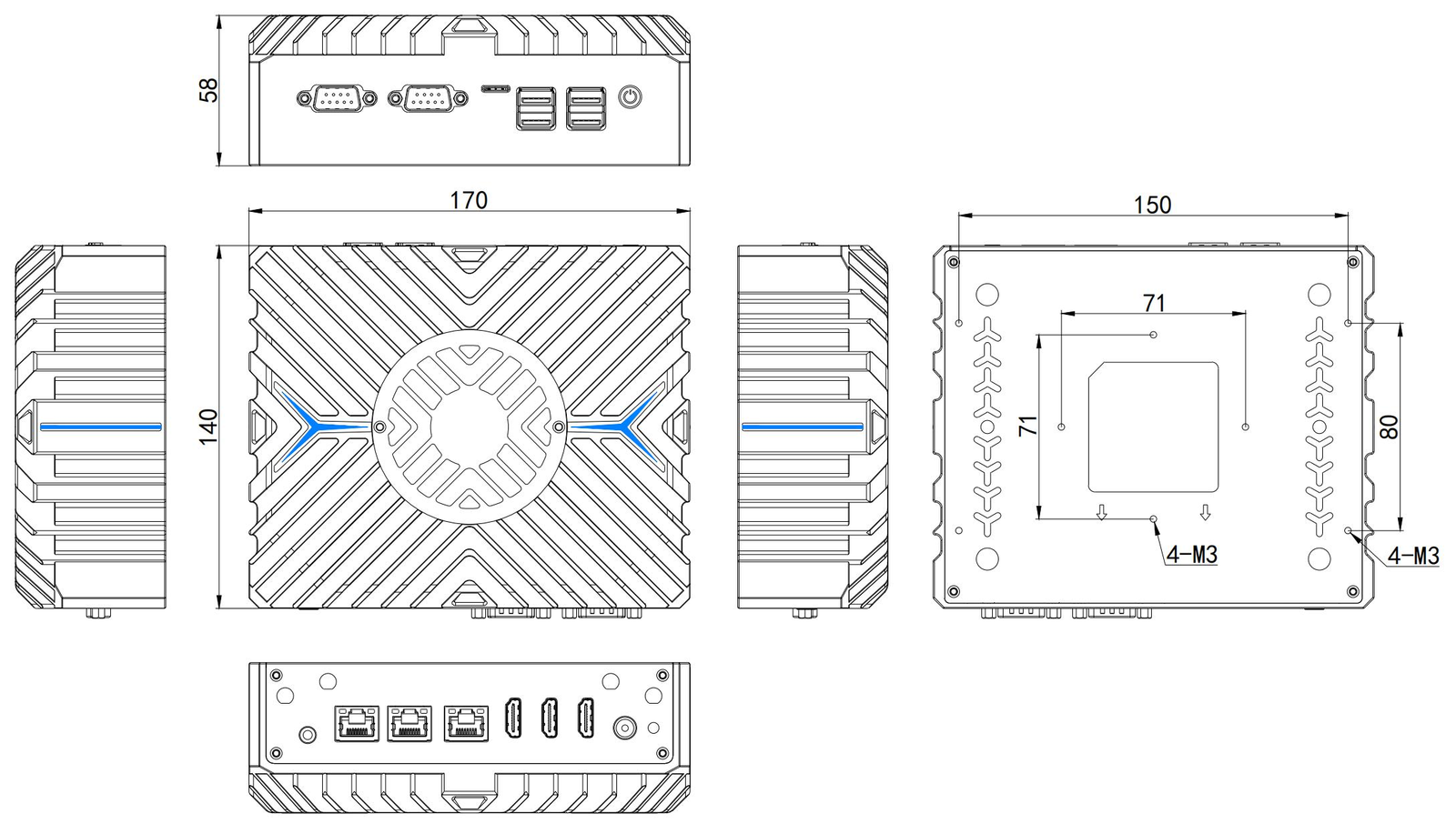

| Product size | 170*140*58 mm | |||
| Packing size | 210*160*135mm | |||

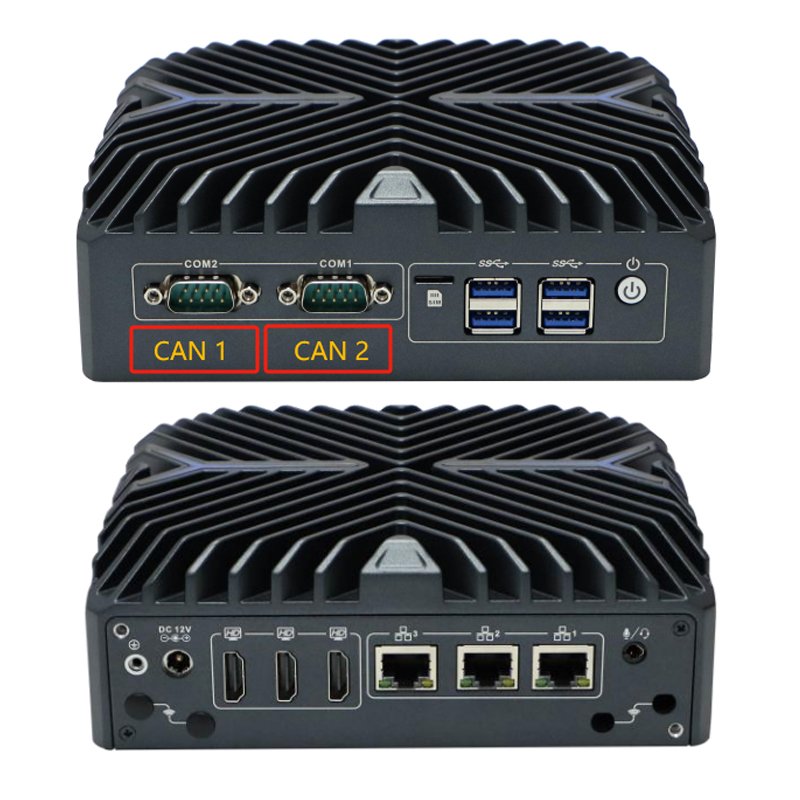

| I/O Interfaces | 3xHDMI, 3xLAN, 2xCOM, 4xUSB, 1xSIM slot, 1×2-in-1 Audio | |||
| 1xDC12V, 1xOn/Off, 1xWIFI/Bluetooth optional | ||||
| 2xCAN BUS, 1xGPIOX4 optional | ||||
| Other Options | Power on | |||
| Scheduled startup | ||||
| Network wake-up | ||||
| PXE boot | ||||
| Watchdog (0-255 levels) | ||||
| TPM2.0 security encryption | ||||
| OS | Support Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc. | |||
| Mountings | Wall mounting bracket | |||
| Desk stand holder / Rail type (optional) | ||||
| Warranty | 1-year free warranty | |||
| Applications | Industrial control, industrial automation, robotics, IoT gateways, edge computing, machine vision, AGV/AMR, etc. | |||
