Description
8-inch to 11.6-inch size range, Customization is welcome!
Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.
What Differences Between Capacitive Touch and Resistive Touch?
Features:
● 1. 350nits for indoor application.
● 2. Adopting EETI solution, capacitive touch, industrial-grade, high-performance.
● 3. Dust-proof, front IP65 Waterproof, Shock-proof, and Anti-interference.
● 4. DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours.
● 5. Fanless aluminum alloy shell, sturdy and durable with an efficient heat dissipation system.
Highlights:
1. Multi-functional face recognition intelligent terminal;
2. Aluminum alloy: preferred aluminum alloy material both exquisite and durable;
3. Arc heat dissipation design: larger area and good thermal conductivity
4. Hidden interface: doesn’t affect the appearance of the whole machine;
5. Switch button: it can be set to start automatically after power on, and merge in multiple ways
6. Industrial grade quality: suitable for various complex environments:
1) Front IP65 waterproof, and dustproof
2) Night vision HD industrial grade LED
3) High and low-temperature resistance -10℃~+60℃
4) Rugged aluminum alloy body
5) Tempered glass explosion-proof screen
6) 7*24 hours uninterrupted operation
Other Size Optional:
| 7″ 8″ | 10.1″ 10.4″ | 12.1″ | 13.3″ | 15″ 15.6″ | 17″ 17.3″ | 19″ 19″ wide | 21.5″ 23.6″ 24″ 27″ |
| 1024*600 1024*768 | 1280*800 1024*768 | 1024*768 1280*800 | 1920*1080 | 1024*768 1920*1080 | 1280*1024 | 1280*1024 1440*900 | 1920*1080 |
| 16:9 4:3 | 16:10 4:3 | 4:3 16:10 | 16:9 | 4:3 l 16:9 | 4:3 | 4:3 | 16:9 |
Other CPU Optional:
| RK3288 Cortex-A17 quad-core,1.8GHz, fanless | |||
| RK3399 Dual Cortex-A72+Quad Cortex-A53, 2.0GHz, fanless |
Application:
Automatic face payment, convenient payment, self-service, identity verification, visitor registration query, smart factory multi-function recognition, autonomous payment for parking
Specification:
| Mainboard | CPU | RK3399 Cortex-A72 dual-core +A53 quad-core, 2.0GHz | ||
| RAM | 4GB/8GB | |||
| SSD | 16G/32GB/64GB | |||
| Screen | Panel size | 11.6″ | ||
| Resolution | 1920*1080 16:9 | |||
| Brightness | 350nits (cd/m²) | |||
| Touchscreen | 5 wires Resistive Touch | |||
| 10 points Capacitive Touch Optional | ||||
| Surface Hardness | ≥3H | |||
| Touch Interface | USB | |||
| Working Life | ≥50 million times | |||
| Function 1 | Temperature Detection | |||
| Function 2 | Face Recognition | |||
| Power Supply | Working voltage | DC12V (DC24V, 9V-36V Optional) | ||
| Enclosure | Material | Aluminum Alloy | ||
| Color | Black | |||
| VESA mounting | 75x75mm/100*100mm | |||
| IP grade | Front panel IP65 waterproof | |||
| Environment | Temperature | Operating: -10 to 60°C, storage: -20 to 70°C | ||
| Relative humidity | 10%~90% @ 30° C, non-condensing | |||
| Dimension | Net weight | / | ||
| Gross weight | / | |||
| Product size | / | |||
| Packing size | / | |||

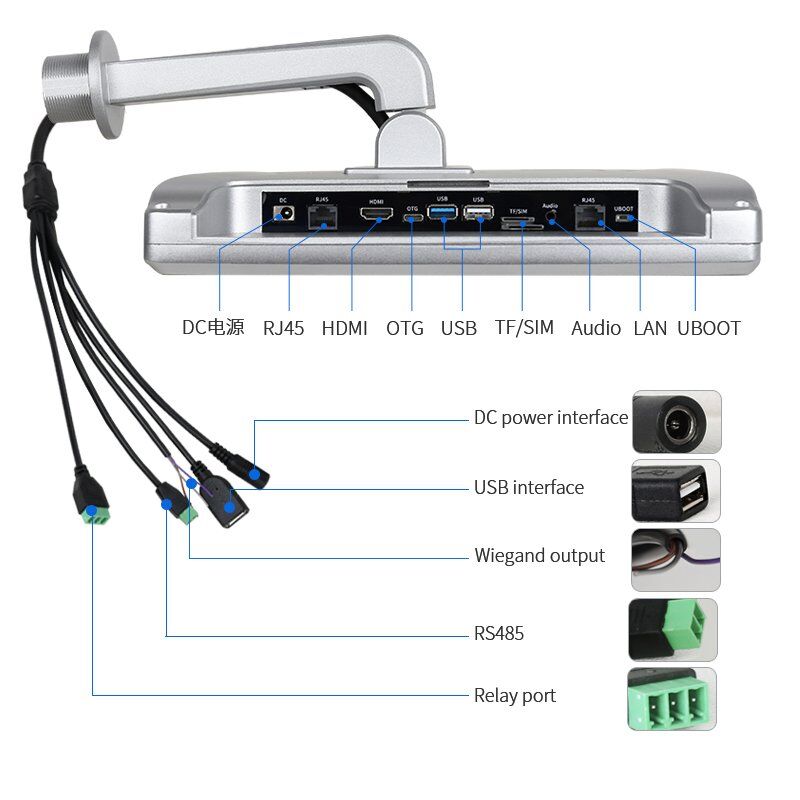

| I/O Interfaces | 1xDC, 1xRJ45, 1xHDMI, 1xOTG, 1xUSB, 1xTF/SIM, 1xAudio, 1xLAN, 1xUboot | |||
| 1xDC Power Interface, 1xUSB Interface, 1xWiegand Output, 1xRS485, 1xRelay port | ||||
| OS | Support Android, Linux, Ubuntu, Debian, etc. | |||

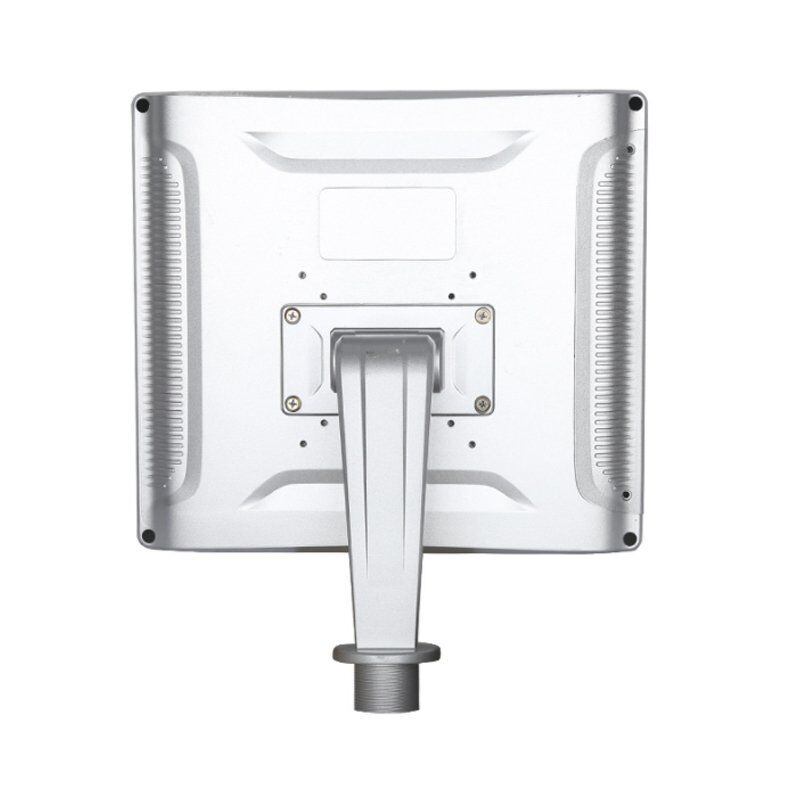

| Mountings | Embedded mounting screws | |||
| Wall mounting brackets; Desk stand holder (optional) | ||||
| Warranty | 1-year free warranty | |||
