Description
5-inch to 32-inch size range, Customization is welcome!
Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.
What Differences Between Capacitive Touch and Resistive Touch?
Features:
● 1. 1000nits for outdoor application. （400nits Optional)
● 2. Adopting EETI solution, capacitive touch, industrial-grade, high-performance.
● 3. Dust-proof, FULL IP67 waterproof with M12 Connectors, and shock-proof.
● 4. DC12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours.

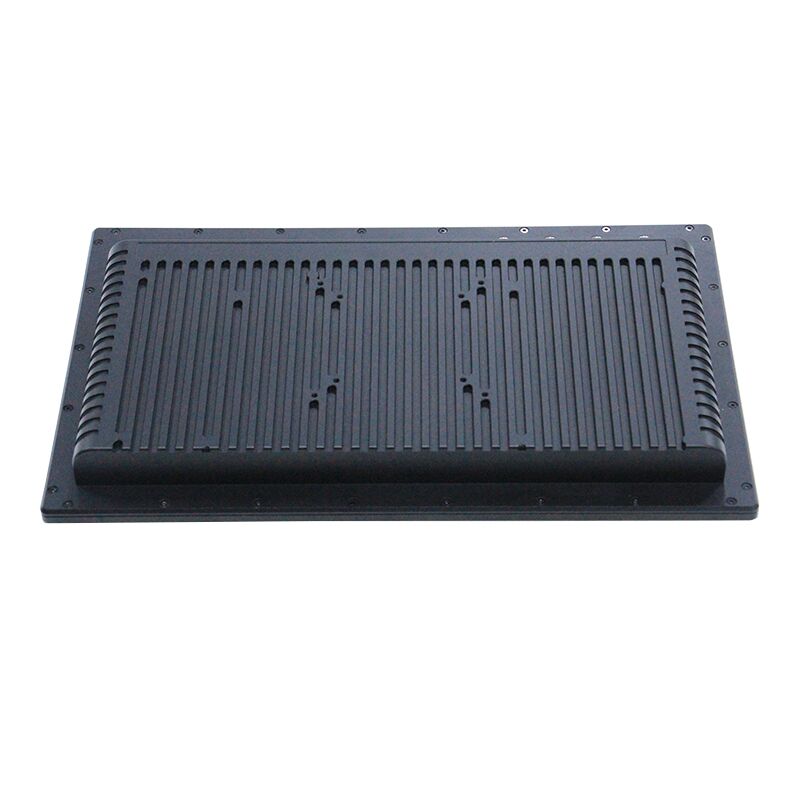

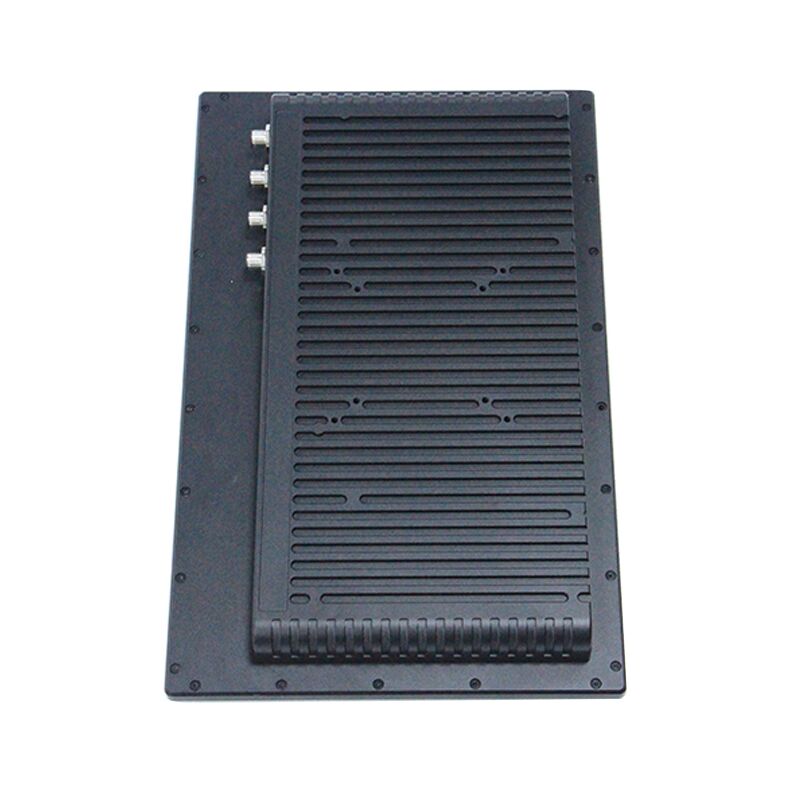

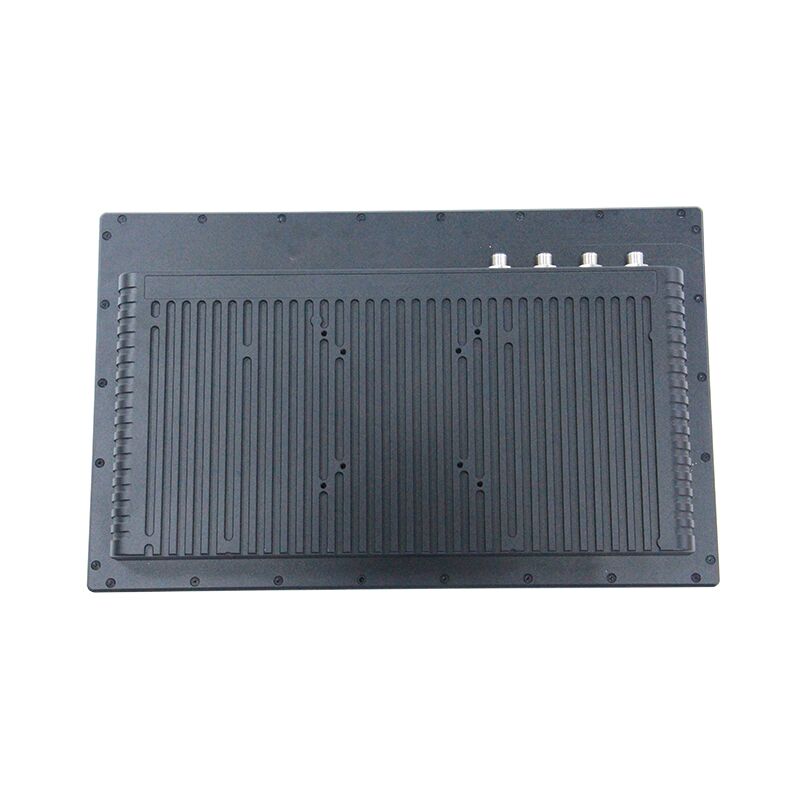

● 5. Fanless aluminum alloy shell with efficient heat dissipation system
Highlights:
Application: Outdoor

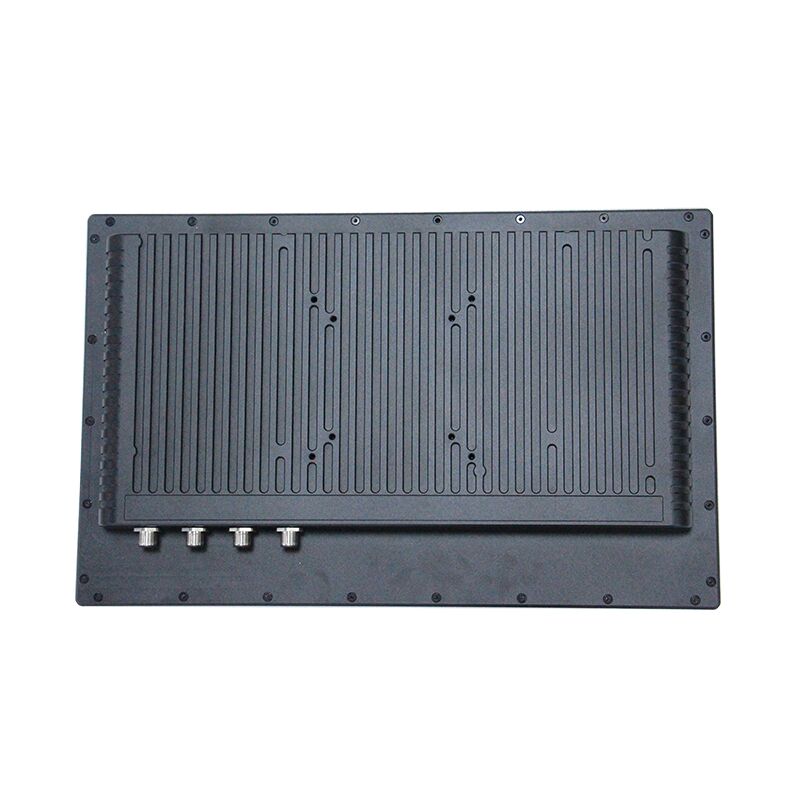

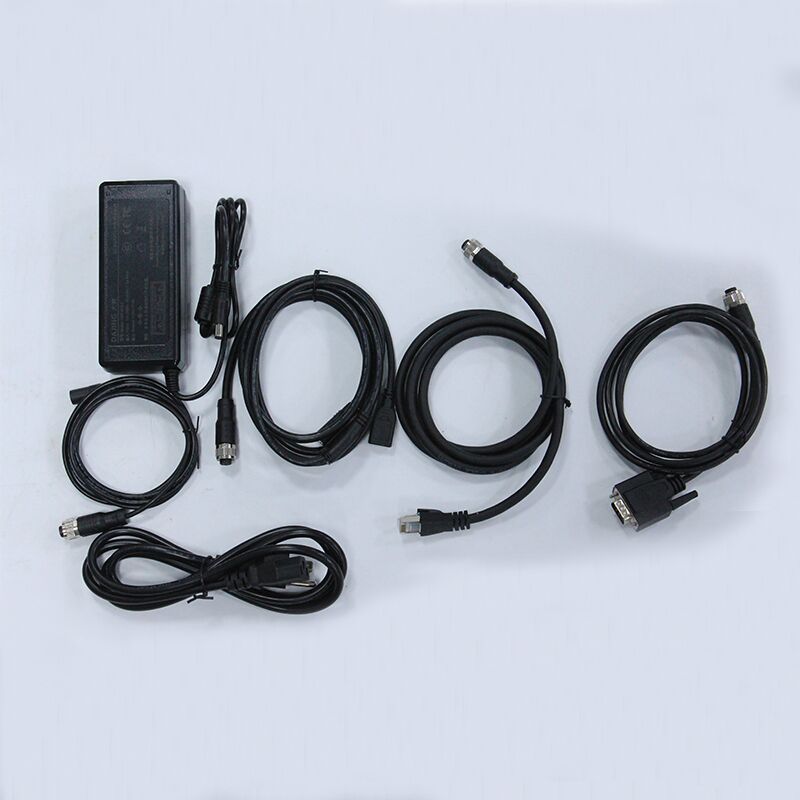

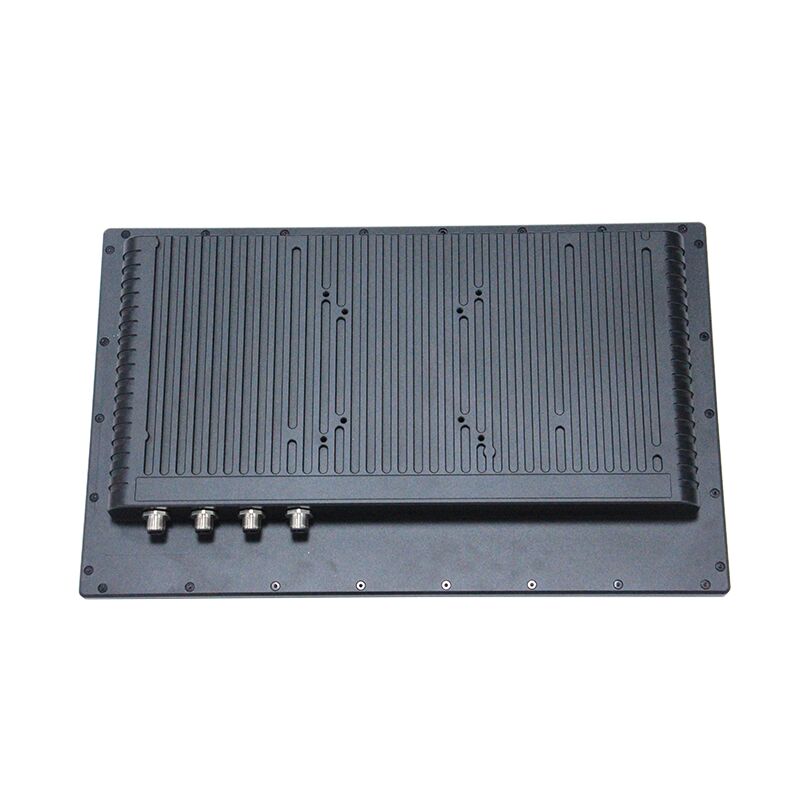

1. M12 Connectors for FULL IP67 Waterproof
2. 1000nits high brightness: sunlight-readable.
What Is A Nit Of Screen Brightness And How Many Do You Need?
3. FULL IP67 waterproof;
4. Auto-dimming with light sensor: to protect your eyes when day and night.
5. Wide temperature -20℃ to +70℃, industrial-grade & high-performance.
6. Optical Bonding reduces moisture condensation & light reflections with a better image.
(If under an extremely environment: high temperature & high water vapor) .
Size Optional:
| 7″ 8″ | 10.1″ 10.4″ | 12.1″ | 13.3″ | 15″ 15.6″ | 17″ 17.3″ 18.5″ | 19″ 19″ wide | 21.5″ 23.8″ 24″ |
| 1024*600 1024*768 | 1280*800 1024*768 | 1024*768 1280*800 | 1920*1080 | 1024*768 1920*1080 | 1280*1024 1920*1080 | 1280*1024 1440*900 | 1920*1080 |
| 16:9 4:3 | 16:10 4:3 | 4:3 16:10 | 16:9 | 4:3 16:9 | 4:3 16:9 | 4:3 16:10 | 16:9 |
CPU Optional:
| RK3288 Cortex-A17 quad-core,1.8GHz, fanless | |||
| RK3399 Dual Cortex-A72+Quad Cortex-A53, 2.0GHz, fanless |
