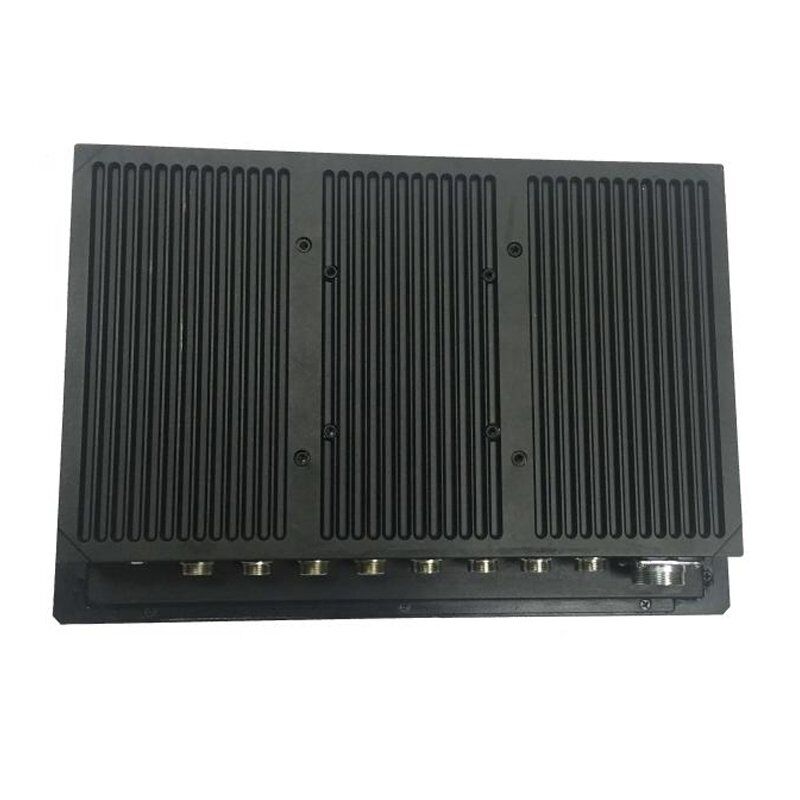

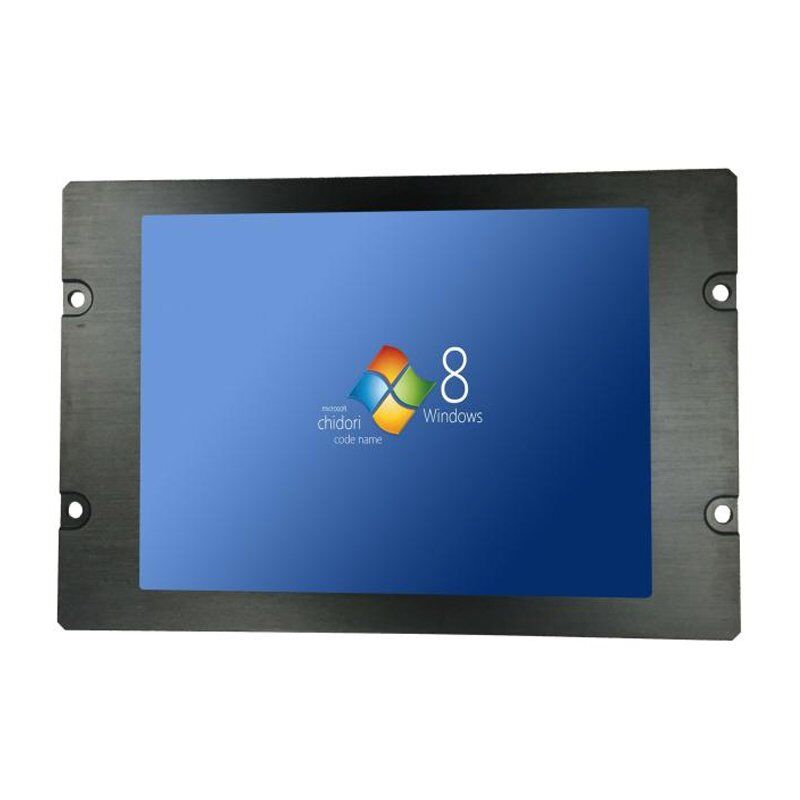

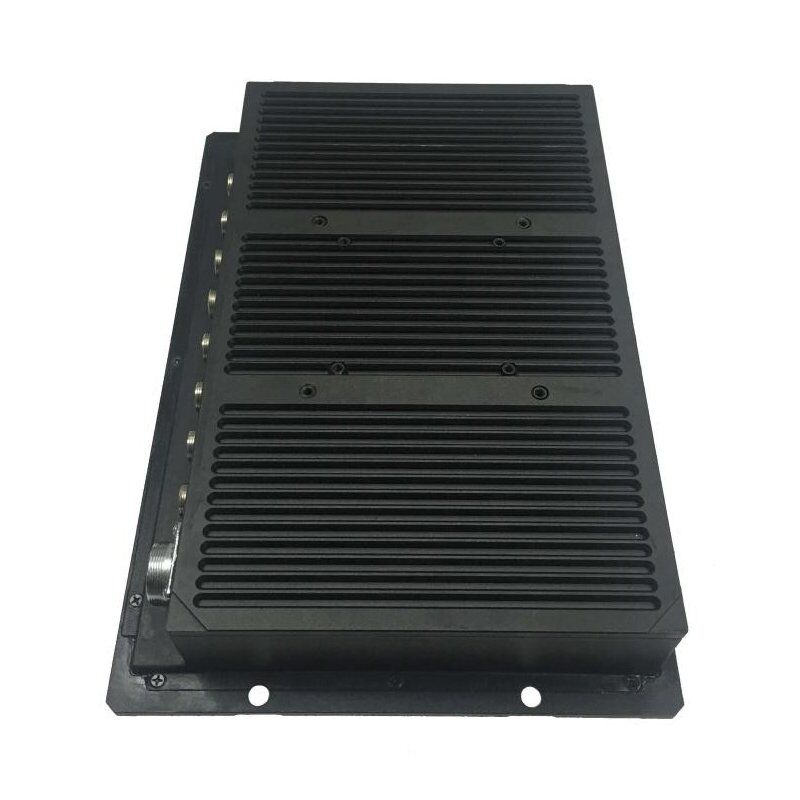

12.1-inch Rack Mount Customized Touch Panel PC J1900 2G 32G 1000nits Full IP65 for Factory Automation (HV-C121W)

Additional information

CPU

J1900, I3, I5, I7

RAM

2G/4G/8G

Memory

32G/64G/128G/256G

Size

12.1-inch

Resolution

1024*768

Touch Type

5 wires resistive touch

Brightness

1000nits high brightness, sunlight-readable

IP Grade

Full IP65 Waterproof

Material

Aluminum Alloy, Fanless

Temperature

-20℃ to 70℃

Interfaces

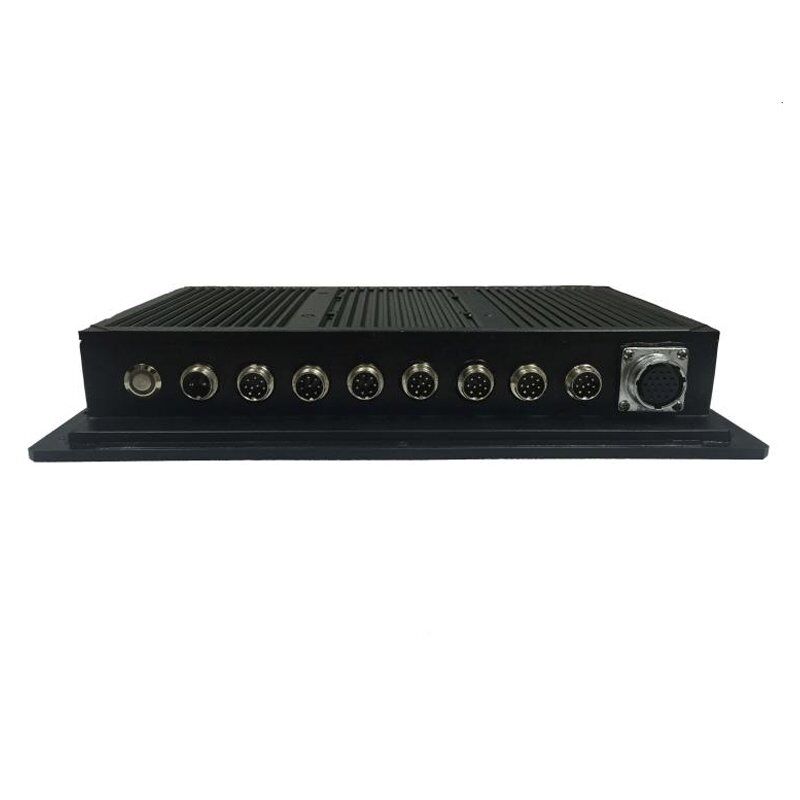

4xRS232, 2xUSB, 1xLAN, 1xDC IN, 1xVGA, 1xOn/Off

Power Supply

DC12V (DC24V, 9-36V Optional)

Operation System

Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc.

Application

Fish & Meat Factory, Car Wash Room, Slaughterhouse, Outdoor

Warranty

1-Year Free Warranty

Production Lead Time

Sample: 20-35 Working Days; Bulk: 20 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery

Description

5-inch to 32-inch size range, Customization is welcome!

Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.

What Differences Between Capacitive Touch and Resistive Touch?



Features:

● 1. Full IP65 waterproof and dustproof design
● 2. Aluminum alloy enclosure, more resistant to corrosion, shock and vibration
● 3. Adopting EETI solution + industrial-grade resistive touch, high performance
● 4. DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours
● 5. High brightness 1000nits for outdoor application, 400nits Optional for indoor



Highlights:

1. FULL IP65 waterproof;

How to Choose IP Level for Your Device?

2. High brightness, 1000nits, sunlight-readable.

What Is A Nit Of Screen Brightness And How Many Do You Need?

What Is Optical Bonding of the TouchScreen Monitor?



Size Optional:

8″ 10.1″ 12.1″ 13.3″ 15″    l    15.6″ 17″ 19″ 21.5″
1024*768 1280*800 1280*800 1920*1080 1024*768 /1920*1080 1280*1024 1280*1024 1920*1080
4:3 16:10 16:10 16:9 4:3    l    16:9 4:3 4:3 16:9

CPU Optional:

Intel® Celeron J1900, quad core, 2.0GHz, fanless
Intel® Core I3-4005U, dual core, 1.7Ghz, fanless
Intel® Core I3-5005U, dual core, 2.0Ghz, fanless
Intel® Core I3-7100U, dual core, 2.3Ghz, fanless
Intel® Core I5-4200U, dual core, 1.6Ghz, fanless
Intel® Core I5-5200U, dual core, 2.2Ghz, fanless
Intel® Core I5-6200U, dual core, 2.3Ghz, fanless
Intel® Core I5-7200U, dual core, 2.5Ghz, fanless
Intel® Core I7-4500U, dual core, 1.8Ghz, fanless
Intel® Core I7-6500U, dual core, 2.5Ghz, fanless
Intel® Core I7-7500U, dual core, 2.7Ghz, fanless



Applications:

Transportation – Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo

System Integration – Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home

Point of Sale – Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino, Sea Food Industry; SlaughterHouse; BreadHouse; Car Washing System

Data Monitoring – Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View

Broadcast & Production – Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production



How to Choose SCREEN for Outdoor or Semi-outdoor Application?

Additional information

CPU

J1900, I3, I5, I7

RAM

2G/4G/8G

Memory

32G/64G/128G/256G

Size

12.1-inch

Resolution

1024*768

Touch Type

5 wires resistive touch

Brightness

1000nits high brightness, sunlight-readable

IP Grade

Full IP65 Waterproof

Material

Aluminum Alloy, Fanless

Temperature

-20℃ to 70℃

Interfaces

4xRS232, 2xUSB, 1xLAN, 1xDC IN, 1xVGA, 1xOn/Off

Power Supply

DC12V (DC24V, 9-36V Optional)

Operation System

Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc.

Application

Fish & Meat Factory, Car Wash Room, Slaughterhouse, Outdoor

Warranty

1-Year Free Warranty

Production Lead Time

Sample: 20-35 Working Days; Bulk: 20 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery

Downloads

Acrobat Reader for PDFs Download from External Page
Specification / Datasheet Download Specification (PDF)
Manual Download manual (PDF)
eGTouch Drivers_v2.5.10206.L-x (Linux) X86 ( 32 64 bits ) Download TDL (RAR) | Online Rar to ZIP
eGTouch Drivers_v2.5.10206.L-ma (Linux) ARM MIPS Download TDL (RAR) | Online Rar to ZIP
eGalaxTouch Drivers_5.14.0.19810 (Windows) Download TDW (RAR) | Online Rar to ZIP
Touch Drivers (Android version 2.3.x upwards) Download TDA (RAR) | Online Rar to ZIP
WiFi driver Download WiFi (RAR) | Online Rar to ZIP



Size & Drawing

Application

Transportation – Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo

System Integration – Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home

Point of Sale – Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino, Sea Food Industry; SlaughterHouse; BreadHouse; Car Washing System

Data Monitoring – Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View

Broadcast & Production – Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production
