Description
5-inch to 32-inch size range, Customization is welcome!
Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.
What Differences Between Capacitive Touch and Resistive Touch?
Features:
● 1. NEMA4/IP67 waterproof and dustproof design, all interfaces with CNLINKO connectors
● 2. SUS304 stainless steel enclosure, more resistant to corrosion, shock and vibration
● 3. Adopting EETI solution + industrial-grade resistive touch, high performance
● 4. DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours
● 5. 400nits brightness, 1000nits optional for outdoor application
Highlight:
FULL IP67 waterproof, Stainless Steel enclosure for anti-corrosion.
Application: Fish & Meat Factory, Car Wash Room, Slaughterhouse …
How to Choose SCREEN for Outdoor or Semi-outdoor Application?
Specifications:
Size Optional:
| 8″ | 10.1″ | 12.1″ | 13.3″ | 15″ l 15.6″ | 17″ | 19″ | 21.5″ |
| 1024*768 | 1280*800 | 1024*768 | 1920*1080 | 1024*768 /1920*1080 | 1280*1024 | 1280*1024 | 1920*1080 |
| 4:3 | 16:10 | 4:3 | 16:9 | 4:3 l 16:9 | 4:3 | 4:3 | 16:9 |
| Screen | LCD Panel | Panel size | 17.3″ | |
| Resolution | 1920*1080 16:9 | |||
| Brightness (cd/m²) | 350 nits (1000 nits Optional for Outdoor) | |||
| Contrast ratio | 600:1 (Typ.) | |||
| View Angle | 80°/80°/60°/80° (R/L/U/D) | |||
| Touch | Touch Type | 5 wires Resistive Touch | ||
| Touch Optional | 10 points Capacitive Touch | |||
| Surface Hardness | ITO Glass, ≥3H | |||
| Touch Interface | USB | |||
| Working Life | ≥50 million times | |||
| Environment | Temperature | Operating: -20 to 70°C, storage: -20 to 70°C | ||
| Humidity | 10%~90% @ 30°C, non-condensing | |||

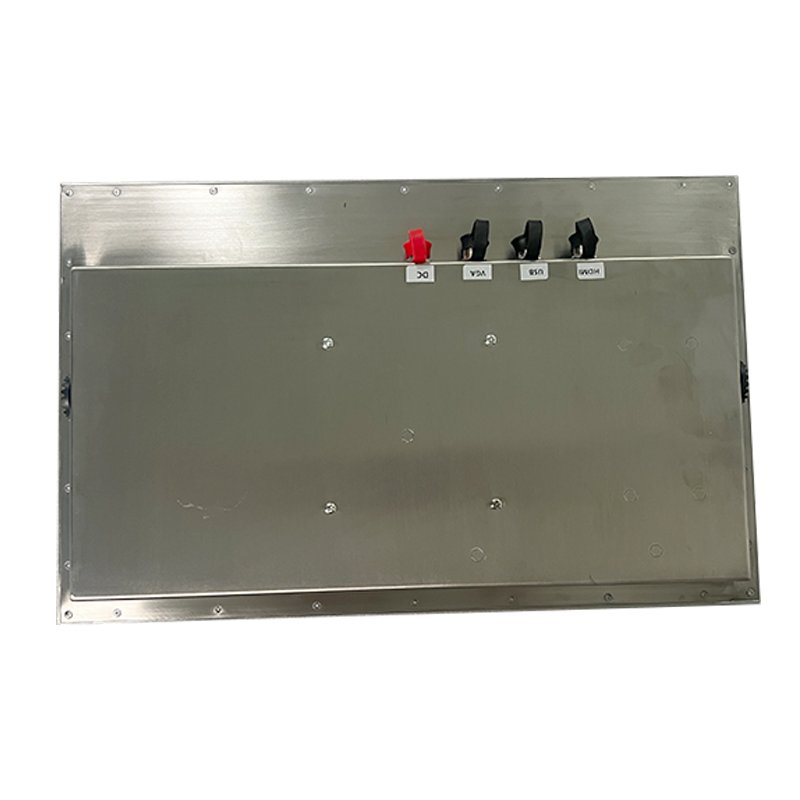

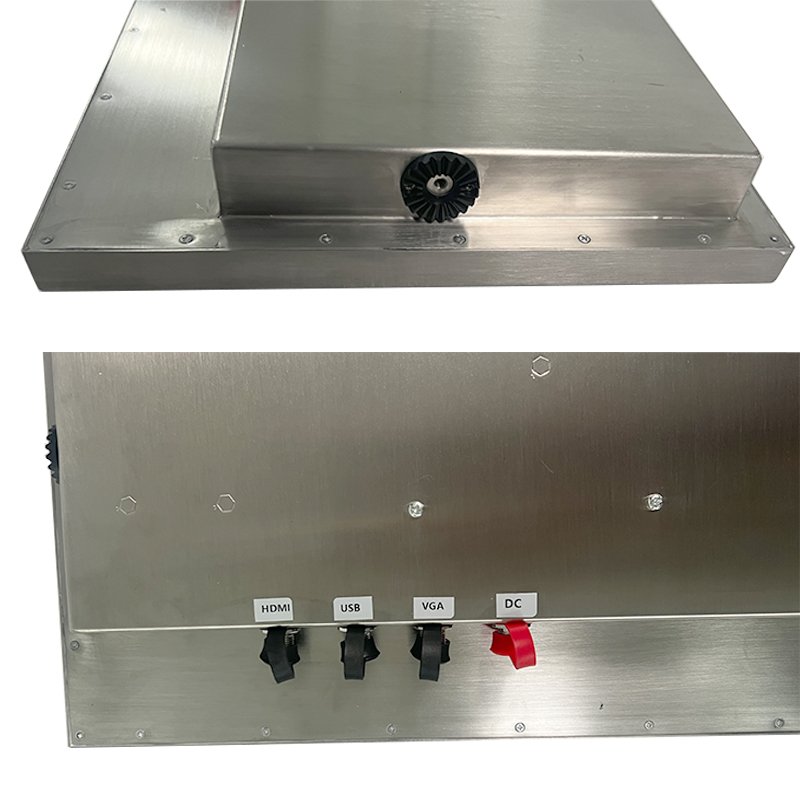

| I/O Interfaces | 1xVGA, 1xHDMI, (DVI, BNC Optional), 1xDC12V, 1xUSB | |||
| Power Supply | DC12V (DC 24v, 9-36v Optional) | |||
| Enclosure | Material | Stainless Steel | ||
| Color | Stainless Steel | |||
| VESA | 100x100mm | |||
| IP grade | FULL IP67 Waterproof | |||
| Dimension | Net weight | 5.8KG | ||
| Gross weight | 7.6KG (Including desktop holder) | |||

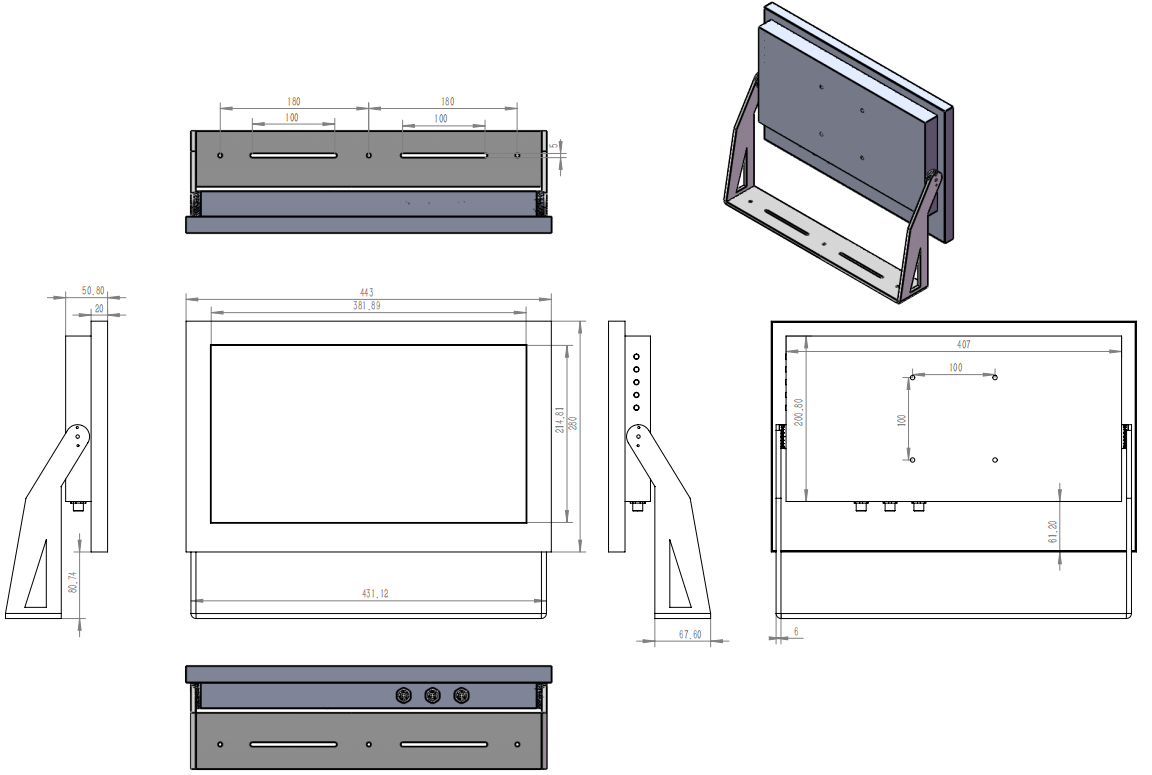

| Product size | 443*280*50.8mm | |||
| Packing size | 670*450*190mm | |||
| Packaging | 1xMonitor, 1xDC Power Cable, 1xAdaptor, 1xUSB Cable, 1xVGA cable | |||
| OS | Support Windows 7/8/10, WES, Linux, Ubuntu, Debian, Android, etc. | |||
| Mountings | Desk stand holder | |||
| Wall mounting brackets, Embedded mounting screws (optional) | ||||
| Warranty | 1-year free warranty | |||
