19-inch Stainless Steel Panel PC FULL IP67 M12 Connector for Food Production & Processing (HV-C190SR)

Additional information

CPU

J1900, I3, I5, I7

RAM

2G/4G/8G/16G

Memory

32GB/64GB/128GB/256GB/512GB

Size

19"

Resolution

1280*1024

Touch Type

10 points capacitive touch, 5 wires resistive touch, No Touch

Glass

Anti-glare Glass Surface Treatment Optional

Brightness

1000nits high brightness, sunlight-readable, 400nits (cd/m²)

Surface Treatment

Optical Bonding Optional

Dimming

Manual Setting

IP Grade

FULL IP67 Waterproof

Material

Stainless Steel

Temperature

-20℃ to 70℃

Interfaces

2xUSB, 1xRJ45, 1xRS232, 1xRS485, 1xDC, 1xOn/Off, 1xAir Valve

Power Supply

DC12V (DC24V, 9-36V Optional)

Operation System

Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc.

Application

BreadShop, Weighing Food Shop, Fish & Meat Factory, Car Wash Room, Slaughterhouse, Indoor, Sailing Boat Shipyard, Yacht

Warranty

1-Year Free Warranty

Production Lead Time

Sample: 20-35 Working Days; Bulk: 20 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery

Description

Story:

Do you want to extend the service life of your monitor or panel pc?

If there is a case: you have a black monitor or panel pc with FULL IP67 Waterproof. You might not be able to repair it by yourself, but it’s such a waste to throw it away.

Now, no worries. Our engineer designed a new model with easy uninstallation & installation way without industrial glue fixing the enclosure.

1) You can replace the screen easily, and repair it.

2) Thus, it can extend the service life of your screen. That means, buying 1 product is equivalent to 2-3 times the use time. It helps you to save money, and trouble is easily solved, too.



5-inch to 32-inch size range, Customization is welcome!

Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.

What Differences Between Capacitive Touch and Resistive Touch?



Features:

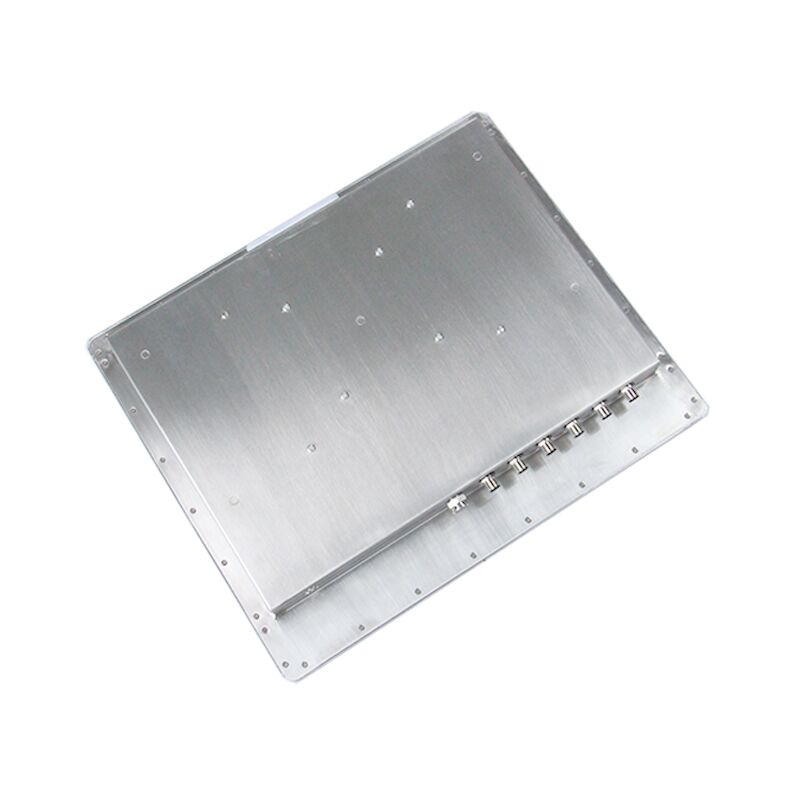

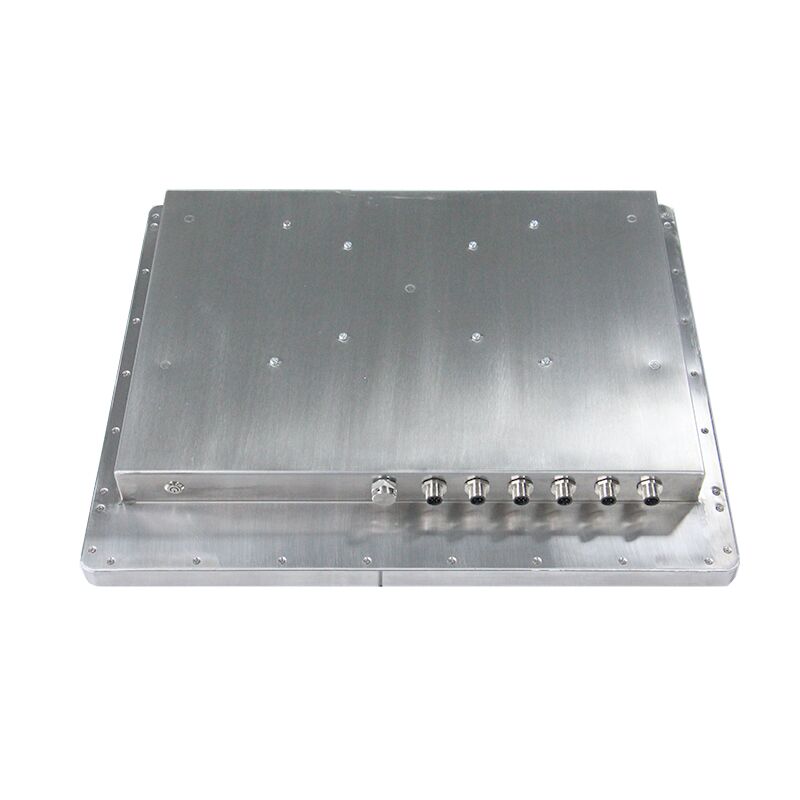

● 1. NEMA4/IP67 waterproof and dustproof design, all interfaces with M12 connectors
● 2. SUS304 stainless steel enclosure, more resistant to corrosion, shock, and vibration
● 3. Adopting EETI solution + industrial-grade capacitive touch, high performance
● 4. DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours
5. Screen replaceable design for repair, easy uninstallation & installation to extend the service life:

  1) Screw Fixing design, easy uninstallation & installation for screen replacement or repair.

        2) A gasket, and rubber ring sealed the junction, no industrial glue for FULL IP67 waterproof.

Highlights:

1. FULL IP67 waterproof, Stainless Steel Enclosure for anti-corrosion;

How to Choose IP Level for Your Device?

2. Anti-glare glass, reduce the shadow under the screen;

What Differences among AF, AG, and AR Coatings?

3. High brightness 1000nits, sunlight-readable;

What Is A Nit Of Screen Brightness And How Many Do You Need?

4. Auto-dimming with light sensor, to protect your eyes when day and night;

5. Industrial grade, wide temperature: -30℃/-20℃ to +70℃/+80℃;

6. Optical bonding for moisture condensation prevention.

What Is Optical Bonding of the TouchScreen Monitor?



How to Choose SCREEN for Outdoor or Semi-outdoor Application?



Specifications:

Size Optional:

7″  8″ 10.1″ 10.4″ 12.1″ 13.3″ 15″ 15.6″ 17″ 17.3″ 18.5″ 19″ 19″ wide 21.5″ 23.8″ 24
1024*600 1024*768 1280*800 1024*768 1024*768 1280*800 1920*1080 1024*768 1920*1080 1280*1024  1920*1080 1280*1024  1440*900 1920*1080
16:9  4:3 16:10  4:3 4:3  16:10 16:9 4:3  16:9 4:3  16:9 4:3  16:10 16:9

CPU Optional:

Intel® Celeron J1900, quad core, 2.0GHz, fanless
Intel® Core I3-4005U, dual core, 1.7Ghz, fanless
Intel® Core I3-5005U, dual core, 2.0Ghz, fanless
Intel® Core I3-7100U, dual core, 2.3Ghz, fanless
Intel® Core I5-4200U, dual core, 1.6Ghz, fanless
Intel® Core I5-5200U, dual core, 2.2Ghz, fanless
Intel® Core I5-6200U, dual core, 2.3Ghz, fanless
Intel® Core I5-7200U, dual core, 2.5Ghz, fanless
Intel® Core I7-4500U, dual core, 1.8Ghz, fanless
Intel® Core I7-6500U, dual core, 2.5Ghz, fanless
Intel® Core I7-7500U, dual core, 2.7Ghz, fanless



Additional information

CPU

J1900, I3, I5, I7

RAM

2G/4G/8G/16G

Memory

32GB/64GB/128GB/256GB/512GB

Size

19"

Resolution

1280*1024

Touch Type

10 points capacitive touch, 5 wires resistive touch, No Touch

Glass

Anti-glare Glass Surface Treatment Optional

Brightness

1000nits high brightness, sunlight-readable, 400nits (cd/m²)

Surface Treatment

Optical Bonding Optional

Dimming

Manual Setting

IP Grade

FULL IP67 Waterproof

Material

Stainless Steel

Temperature

-20℃ to 70℃

Interfaces

2xUSB, 1xRJ45, 1xRS232, 1xRS485, 1xDC, 1xOn/Off, 1xAir Valve

Power Supply

DC12V (DC24V, 9-36V Optional)

Operation System

Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc.

Application

BreadShop, Weighing Food Shop, Fish & Meat Factory, Car Wash Room, Slaughterhouse, Indoor, Sailing Boat Shipyard, Yacht

Warranty

1-Year Free Warranty

Production Lead Time

Sample: 20-35 Working Days; Bulk: 20 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery

Downloads

Acrobat Reader for PDFs Download from External Page
Specification/Datasheet Download Specification (PDF)
Manual Download manual (PDF)
eGTouch Drivers_v2.5.10206.L-x (Linux) X86 ( 32 64 bits ) Download TDL (RAR) | Online Rar to ZIP
eGTouch Drivers_v2.5.10206.L-ma (Linux) ARM MIPS Download TDL (RAR) | Online Rar to ZIP
eGalaxTouch Drivers_5.14.0.19810 (Windows) Download TDW (RAR) | Online Rar to ZIP
Touch Drivers (Android version 2.3.x upwards) Download TDA (RAR) | Online Rar to ZIP
WiFi driver Download WiFi (RAR) | Online Rar to ZIP

Size & Drawing
