Description
5-inch to 21.5-inch size range, Customization is welcome!
Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.
What Differences Between Capacitive Touch and Resistive Touch?
Features:
● 1. 350nits for indoor application.
● 2. Adopting EETI solution, capacitive touch, industrial-grade, high-performance.
● 3. Dust-proof, front IP65 Waterproof, Shock-proof, and Anti-interference.
● 4. DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours.
● 5. Fanless aluminum alloy shell, sturdy and durable with an efficient heat dissipation system.
Highlights:
1. System optional: android 5.1, 6.0, 7.1, Linux, ubuntu;
2. Mouting ways: desktop, VESA, Embedded, wall mounting, etc.;
3. A+ panel, seamless design, IP65 waterproof;
4. Simple And Smart Design All In One;
5. 7/24 working, fanless;
6. Black/silver;
7. Multiple I/O Port To Meet Customers Requirements.
Exquisite appearance 10mm bezel for both industrial and commercial application

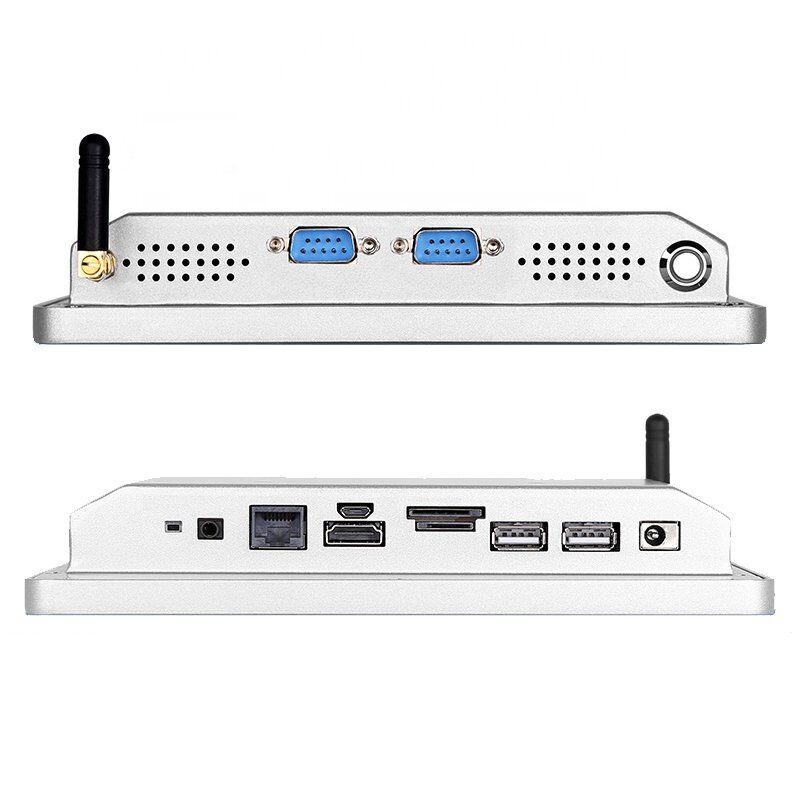

Interfaces for multiple application scenarios
High-definition industrial control LCD screen:
Powerful, efficient fanless, and silent heat dissipation
High-precision capacitive multi-touch at the same, no blind spot.
Other Size Optional:
| 7″ 8″ | 10.1″ 10.4″ | 12.1″ | 13.3″ | 15″ 15.6″ | 17″ 17.3″ | 19″ 19″ wide | 21.5″ |
| 1024*600 1024*768 | 1280*800 1024*768 | 1024*768 1280*800 | 1920*1080 | 1024*768 1920*1080 | 1280*1024 | 1280*1024 1440*900 | 1920*1080 |
| 16:9 4:3 | 16:10 4:3 | 4:3 16:10 | 16:9 | 4:3 l 16:9 | 4:3 | 4:3 | 16:9 |
Other CPU Optional:
| RK3288 Cortex-A17 quad-core,1.8GHz, fanless | |||
| RK3399 Dual Cortex-A72+Quad Cortex-A53, 2.0GHz, fanless |
Applications:
Smart city, education, factory, payment, machine, transportation, medical, workshop, artificial intelligence
