Industrial Touch Monitor 7" 8" 10.1" 11.6" 12.1" 15" 15.6" 17" 17.3" 19" 19"Widescreen 21.5" Aluminum Alloy New Design (HV-M100Q)

Additional information

Size

7" 8" 10.1" 10.4" 11.6" 12.1" 15" 15.6" 17" 17.3" 19" 19"Widescreen 21.5"

Resolution

1024×768 / 1280×800 / 1280×1024 / 1920×1080

Brightness

350nits (cd/m²)

Touch Type

Capacitive Touch / Resistive Touch, No Touch

IP Grade

Front IP65 Waterproof

Material

Aluminum Alloy, Fanless

Temperature

-10℃ to 60℃

Interfaces

1xHDMI, 1xVGA, 1xDVI, 1xUSB, 1xDC12V, 1xDC9~36V, 1xCOM, 1xSpeaker, 1xAudio

Power Supply

DC12~24V

Operation System

Windows 7/8/10, WES, Linux, Ubuntu, Debian, Android etc.

Application

Indoor

Warranty

1-Year Free Warranty

Production Lead Time

Enclosure Stocked: 7-15 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery

Description

7-inch to 24-inch size range, Customization is welcome!

Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.

What Differences Between Capacitive Touch and Resistive Touch?



Features:

● 1. 7×24 continuous operation, industrial high-end configuration.
● 2. Rubber ring design on the backside for perfectly embedded mounting.
● 3. Dust-proof, front IP65 waterproof, and shock-proof.
● 4. DC12~24V wide voltage, 2 Pin Phoenix terminal support.
● 5. Aluminum alloy, fanless, support wall mounting, desk stand, embedded mounting.



Highlights:

Aluminum Alloy Enclosure, Machinery Design, excellent heat dissipation.

Specifications:

Size Optional:

7″ / 8″ 10.1″ / 10.4″ 11.6″ 12.1″ 15″  l  15.6″ 17″ 17.3″ 19″ / 19″ wide 21.5″
1024*600 / 1024*768 1280*800 / 1024*768 1920*1080 1024*768 /1280*800 1024*768 /1920*1080 1280*1024 1280*1024 1440*900 1920*1080
16:9  4:3 16:10  4:3 16:9′ 4:3  16:10 4:3  16:9 4:3 4:3 16:9



Example:

Screen LCD Panel Panel size 21.5″
Resolution 1920*1080  16:9
Brightness (cd/m²) 350nits
Contrast ratio 800:1 (Typ.)
View Angle 80°/80°/80°/80° (R/L/U/D)
Touch Touch Type 10 points Capacitive Touch
Touch Optional No Touch
5 wires Resistive Touch
Surface Hardness ≥3H; or G+G Glass, ≥7H
Touch Interface USB
Working Life ≥50 million times
Environment Temperature Operating: -10 to 60°C, storage: -20 to 70°C
Humidity 10%~90% @ 30°C, non-condensing

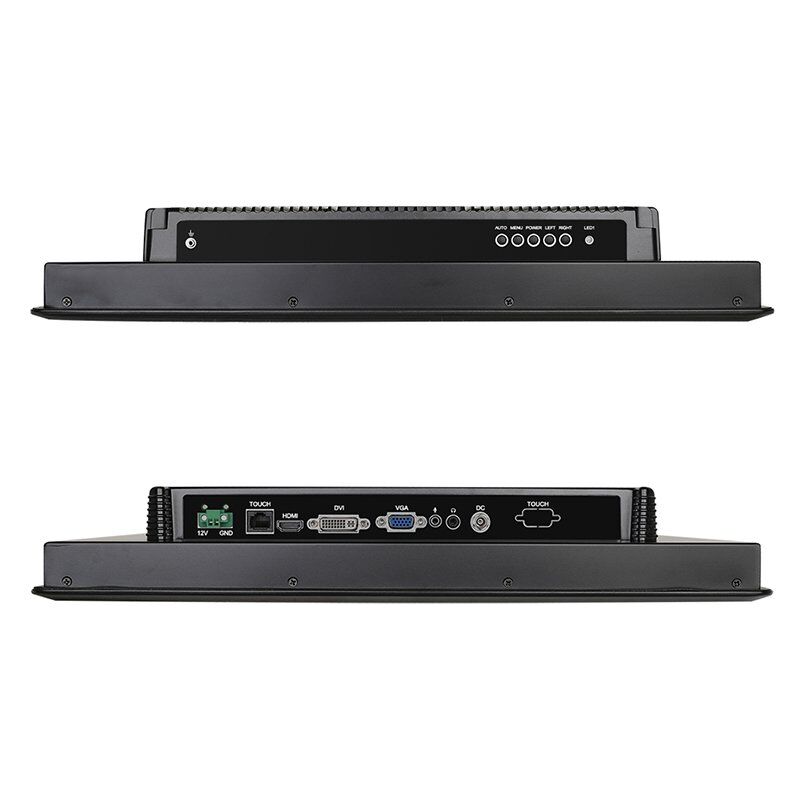

I/O Interfaces 1xVGA, 1xDVI, 1xHDMI, 1x RJ for Touch, 1xDC, 1xAudio, 1xDC
Power Supply DC12~24V
Power Consumption >35W
Enclosure Material Aluminum Alloy
Color Black
VESA 75mm*75mm/100mm*100mm
IP grade Front IP65 Waterproof
Dimension Net weight 6.1kg
Gross weight 7.6kg
Product size 537.4*328.8*64.5mm
Packing size 740*450*180mm
Packaging 1xMonitor, 1xDC Power Cable, 1xAdaptor, 1xUSB Cable, 1xVGA cable
OS Support Windows 7/8/10, WES, Linux, Ubuntu, Debian, Android, etc.
Mountings Embedded mounting screws
Wall mounting brackets, Desk stand holder (optional)
Certificates CE/RoHS/FCC
Warranty 1-year free warranty

Additional information

Size

7" 8" 10.1" 10.4" 11.6" 12.1" 15" 15.6" 17" 17.3" 19" 19"Widescreen 21.5"

Resolution

1024×768 / 1280×800 / 1280×1024 / 1920×1080

Brightness

350nits (cd/m²)

Touch Type

Capacitive Touch / Resistive Touch, No Touch

IP Grade

Front IP65 Waterproof

Material

Aluminum Alloy, Fanless

Temperature

-10℃ to 60℃

Interfaces

1xHDMI, 1xVGA, 1xDVI, 1xUSB, 1xDC12V, 1xDC9~36V, 1xCOM, 1xSpeaker, 1xAudio

Power Supply

DC12~24V

Operation System

Windows 7/8/10, WES, Linux, Ubuntu, Debian, Android etc.

Application

Indoor

Warranty

1-Year Free Warranty

Production Lead Time

Enclosure Stocked: 7-15 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery

Downloads

Acrobat Reader for PDFs Download from External Page
Specification/Datasheet Download Specification (PDF)
Manual Download manual (PDF)
eGTouch Drivers_v2.5.10206.L-x (Linux) X86 ( 32 64 bits ) Download TDL (RAR) | Online Rar to ZIP
eGTouch Drivers_v2.5.10206.L-ma (Linux) ARM MIPS Download TDL (RAR) | Online Rar to ZIP
eGalaxTouch Drivers_5.14.0.19810 (Windows) Download TDW (RAR) | Online Rar to ZIP
Touch Drivers (Android version 2.3.x upwards) Download TDA (RAR) | Online Rar to ZIP
WiFi driver Download WiFi (RAR) | Online Rar to ZIP



Size & Drawing
