Industrial Touch Panel PC 10.1" 10.4" 12.1" 15" 17" 19" 21.5" for Building Security Control (HV-C100T)

Additional information

CPU

J1900, I3, I5, I7

RAM

2G/4G/8G

Memory

32G/64G/128G/256G

Size

10.1" 10.4" 12.1" 15" 17" 19" 21.5"

Resolution

1024×768 / 1280×800 / 1280×1024 / 1920×1080

Brightness

350nits (cd/m²)

Touch Type

Capacitive Touch / Resistive Touch

IP Grade

Front IP65 Waterproof

Material

Fanless Metal

Temperature

0℃ to 60℃

Interfaces

4xUSB, 2xCOM, 1xRJ45, 1xHDMI, 1xVGA, 1xDC, 1xAudio, 1xWIFI

Power Supply

DC12V (DC24V, 9-36V Optional)

Operation System

Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc.

Application

Indoor

Warranty

1-Year Free Warranty

Production Lead Time

Enclosure Stocked: 7-15 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery

Description

5-inch to 32-inch size range, Customization is welcome!

Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.

What Differences Between Capacitive Touch and Resistive Touch?



Features:

● 1. 350nits for indoor application.
● 2. Adopting EETI solution, capacitive touch, industrial-grade, high-performance.
● 3. Dust-proof, front IP65 waterproof, and shock-proof.
● 4. DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours.
● 5. Fanless metal shell, sturdy and durable with efficient heat dissipation system.



Specifications:

Size Optional:

10.1″ 10.4″ 12.1″ 15″ 17″ 19″ 19″ Widescreen 21.5″
1280*800 1024*768 1280*800  1024*768 1024*768 1280*1024 1280*1024 1440*900 1920*1080
16:10 4:3 16:10  4:3 4:3 4:3 5:4 16:10 16:9

CPU Optional:

Intel® Celeron J1900, quad-core, 2.0GHz, fanless
Intel® Core I5-4200U, dual-core, 1.6Ghz, fanless
Intel® Core I5-5200U, dual-core, 2.2Ghz, fanless
Intel® Core I5-6200U, dual-core, 2.3Ghz, fanless
Intel® Core I5-7200U, dual-core, 2.5Ghz, fanless
Intel® Core I7-4500U, dual-core, 1.8Ghz, fanless
Intel® Core I7-6500U, dual-core, 2.5Ghz, fanless
Intel® Core I7-7500U, dual-core, 2.7Ghz, fanless



Mainboard CPU Intel® Celeron J1900, quad-core, 2.0GHz, fanless
RAM 2GB/4GB
SSD 32GB/64GB/128GB/256GB
Screen Panel size 10.4″
Resolution 1024*768  4:3
Brightness 350nits (cd/m²)
Touchscreen 10 points Capacitive Touch
5 wires Resistive Touch Optional
Surface Hardness G+G Glass, ≥6H
Touch Interface USB
Working Life ≥50 million times
Power Supply Working voltage DC12V (DC24V, 9V-36V Optional)
Enclosure Material Metal, Fanless
Color Black

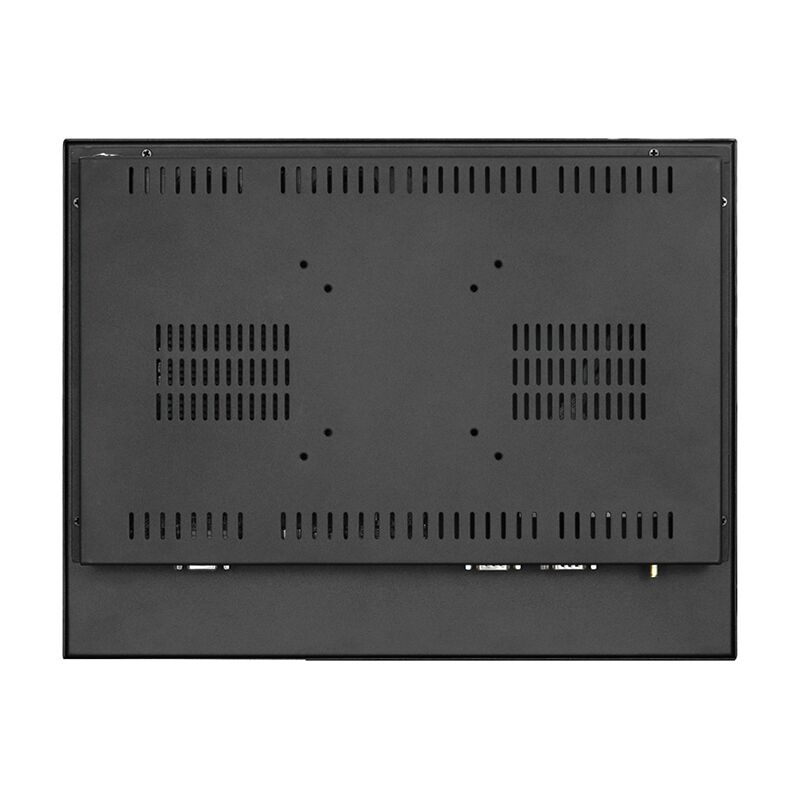

VESA mounting 75x75mm/100*100mm
IP grade Front panel IP65 waterproof
Environment Temperature Operating: -0 to 60°C, storage: -10 to 70°C
Relative humidity 10%~90% @ 30° C, non-condensing
Dimension Net weight /
Gross weight /
Product size 261x214x51.9mm
Packing size /

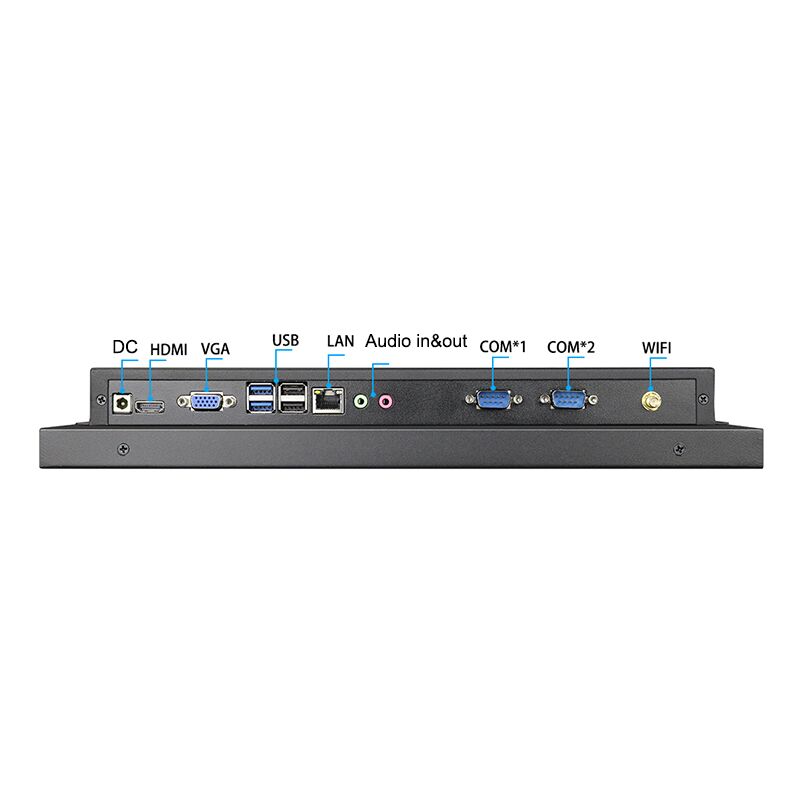

I/O Interfaces 4xUSB, 2xCOM, 1xRJ45, 1xHDMI, 1xVGA, 1xDC, 1xAudio, 1xWIFI
OS Support Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc.
Mountings Embedded mounting screws
Wall mounting brackets; Desk stand holder (optional)
Warranty 1-year free warranty

Additional information

CPU

J1900, I3, I5, I7

RAM

2G/4G/8G

Memory

32G/64G/128G/256G

Size

10.1" 10.4" 12.1" 15" 17" 19" 21.5"

Resolution

1024×768 / 1280×800 / 1280×1024 / 1920×1080

Brightness

350nits (cd/m²)

Touch Type

Capacitive Touch / Resistive Touch

IP Grade

Front IP65 Waterproof

Material

Fanless Metal

Temperature

0℃ to 60℃

Interfaces

4xUSB, 2xCOM, 1xRJ45, 1xHDMI, 1xVGA, 1xDC, 1xAudio, 1xWIFI

Power Supply

DC12V (DC24V, 9-36V Optional)

Operation System

Windows 7/8/10, WES, Linux, Ubuntu, Debian, etc.

Application

Indoor

Warranty

1-Year Free Warranty

Production Lead Time

Enclosure Stocked: 7-15 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery
