Description
5-inch to 32-inch size range, Customization is welcome!
Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.
What Differences Between Capacitive Touch and Resistive Touch?
Application: Marine, Industrial, Security, Kiosks, Vehicles, or Outdoor Displays.
Features:
● 1. Embedded outdoor KIOSK design, especially for MARINE Projects.
● 2. Adopt 5 Wires Resistive Touch, high sensitivity, and fast response.
● 3. 1000nits (cd/㎡), sunlight-readable, high brightness.
● 4. DC9-36V Wide Voltage, industrial grade. (DC12V, DC12-24V optional)
● 5. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
Highlights:
Application: Outdoor KIOSK

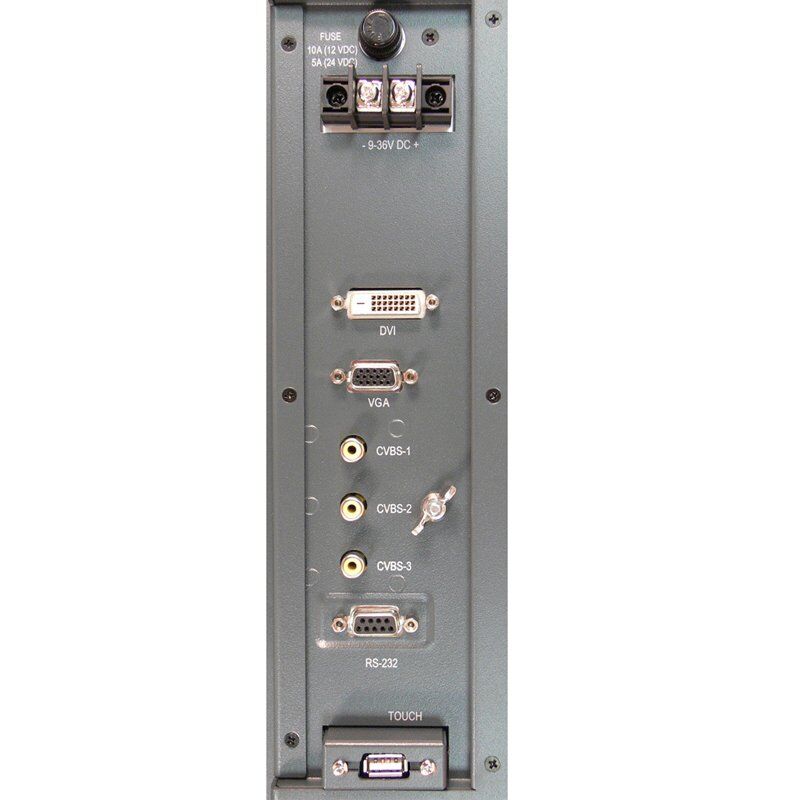

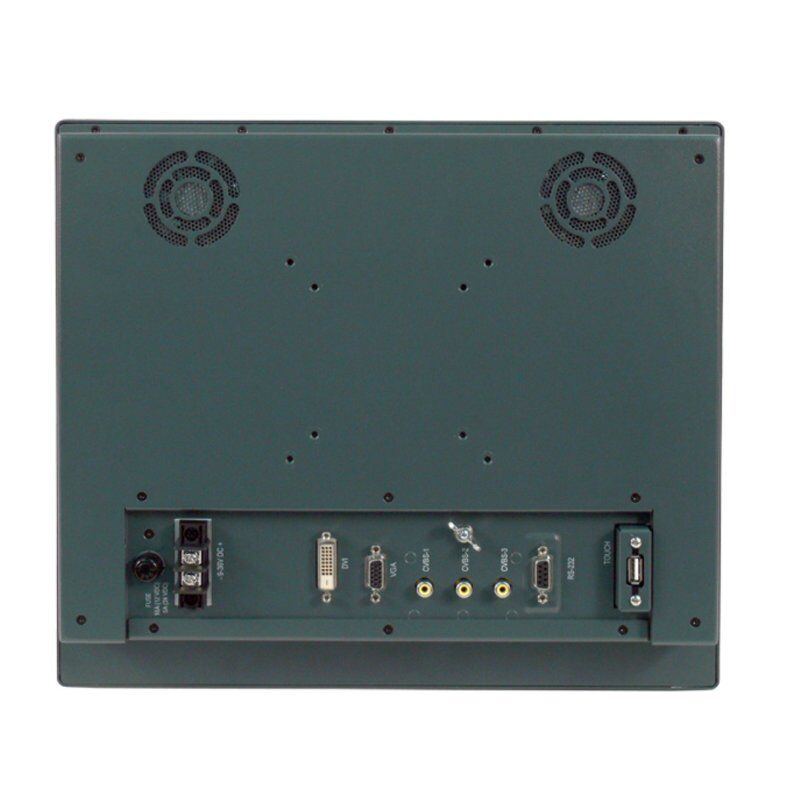

1. Marine Interfaces:
1xFUSE, 1xDVI, 1xVGA, 3xCVBS(Composite Video) for AV, 1xUSB, 1xFront OSD Control, 1xVR Knob.
2. 1000nits high brightness: sunlight-readable.
What Is A Nit Of Screen Brightness And How Many Do You Need?
3. Wide temperature -20℃ to +70℃, industrial-grade & high-performance.
Size Optional:
| 7″/8″ | 10.1″ | 12.1″ | 13.3″ | 15″ | 15.6 | 17″ | 19″ / 21.5 |
| 1024*600/1024*768 | 1280*800 | 1024*768 | 1920*1080 | 1024*768 | 1920*1080 | 1280*1024 | 1280*1024 / 1920*1080 |
| 4:3 | 16:10 | 4:3 | 16:9 | 4:3 | 16:9 | 4:3 | 4:3 |
