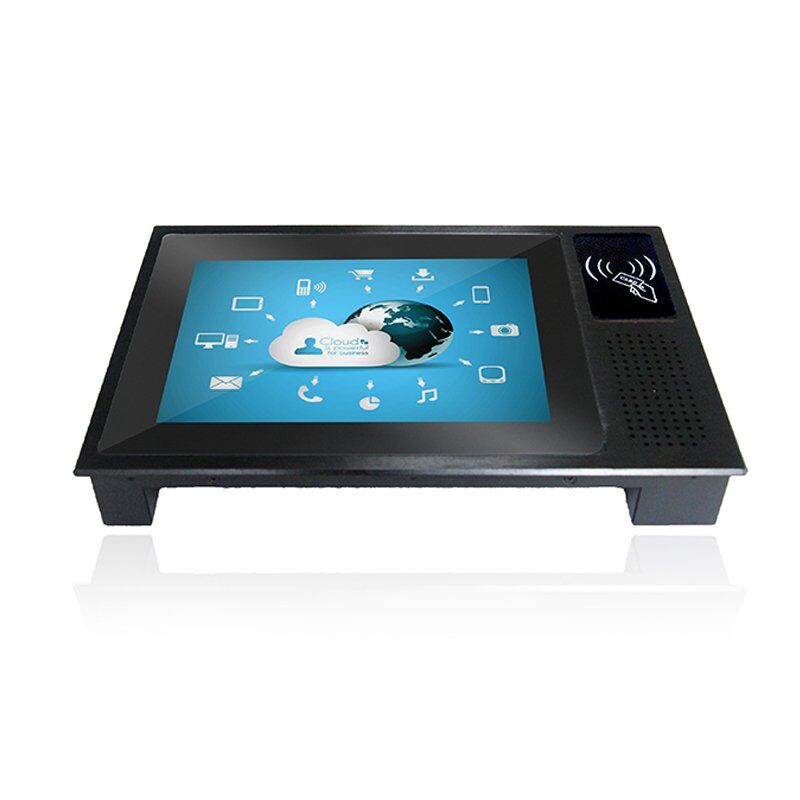

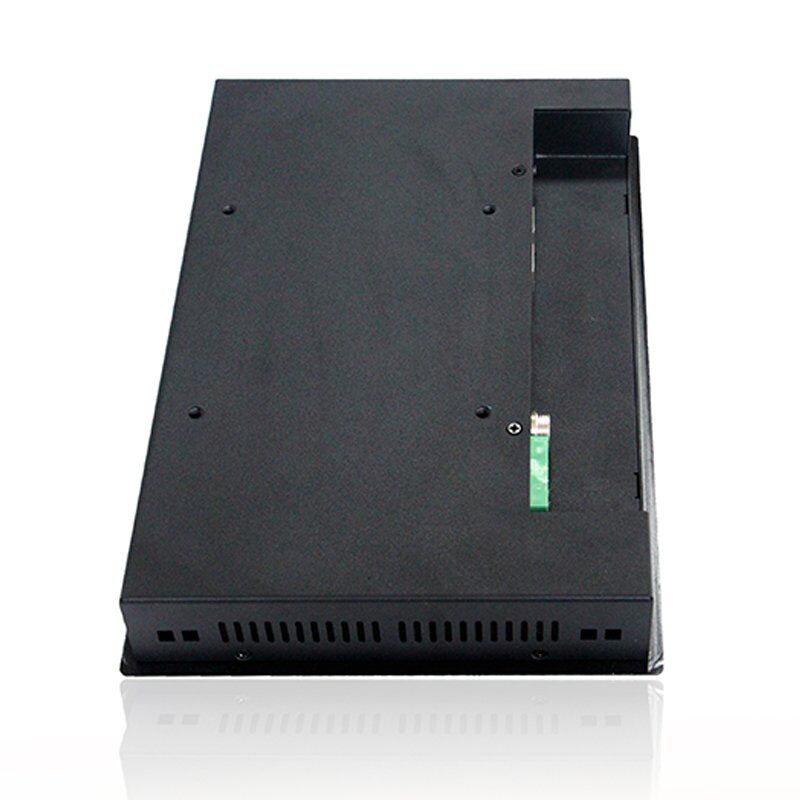

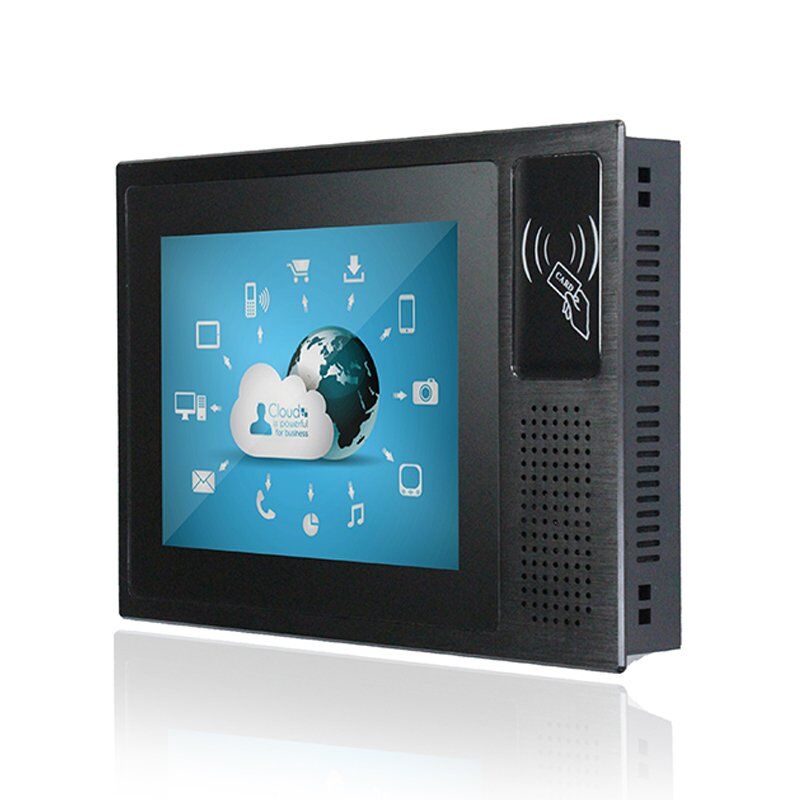

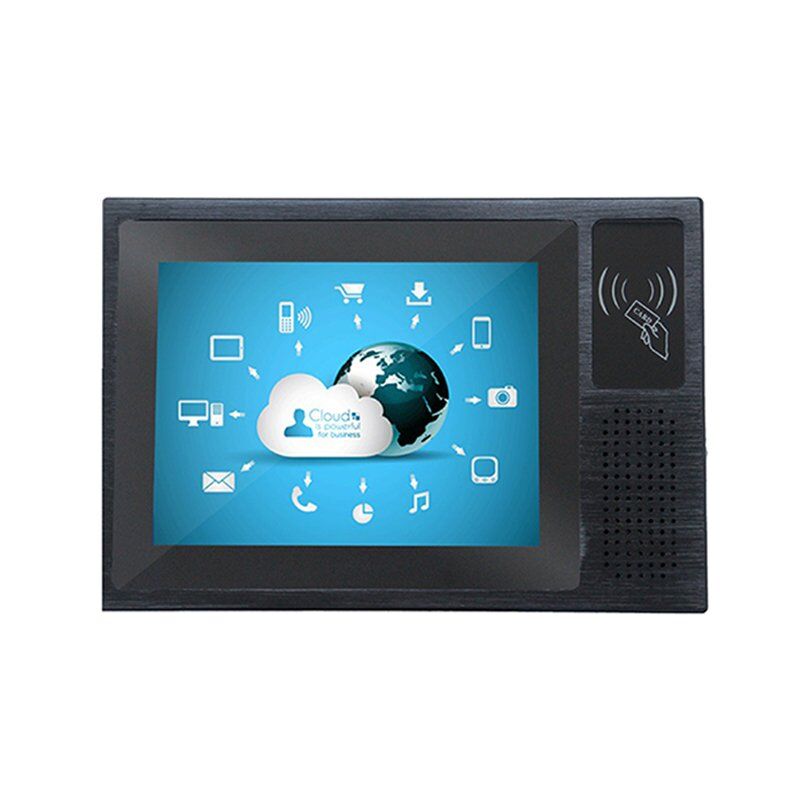

1000nits Optional 8-inch with Card Reader Speaker Android 9.0 Tablet PC for SPA Locker Room (HV-C080AO)

Additional information

CPU

RK3288 Cortex-A17 quad core,1.8GHz, fanless, RK3399 Cortex-A72 dual-core +A53 quad-core, 2.0GHz

RAM

2G/4G/8G

Memory

8G/16G/32G/64G

Size

8"

Resolution

1024*768

Touch Type

10 points capacitive touch

Glass

Optical Bonding

Brightness

1000nits high brightness, sunlight-readable, 350nits (cd/m²)

IP Grade

Front IP65 Waterproof

Material

Front Aluminum Alloy + Back High Strength Cold Rolled Steel Metal, Fanless

Temperature

-20℃ to 70℃

Interfaces

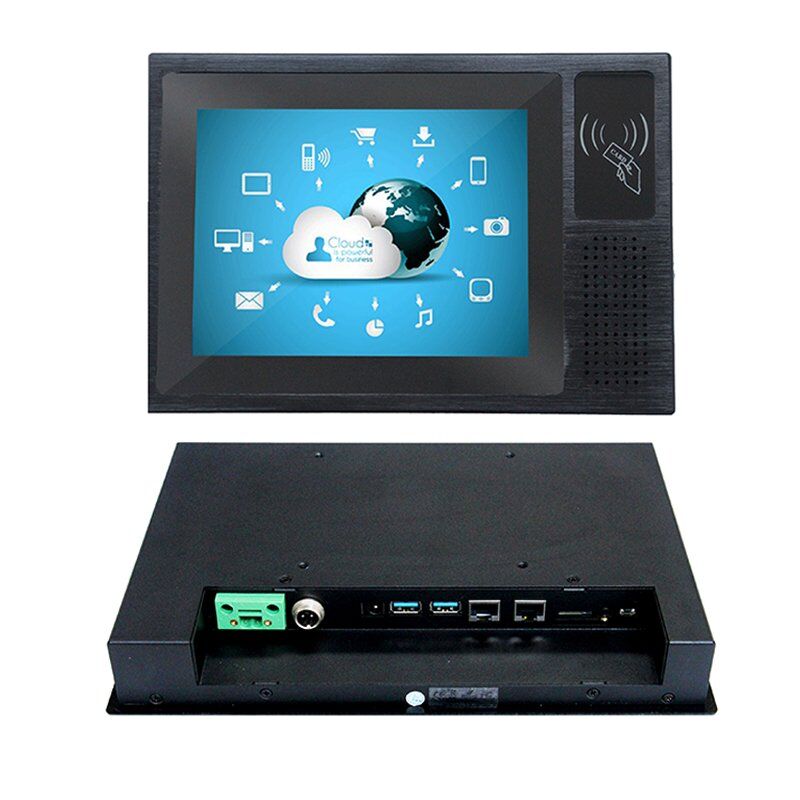

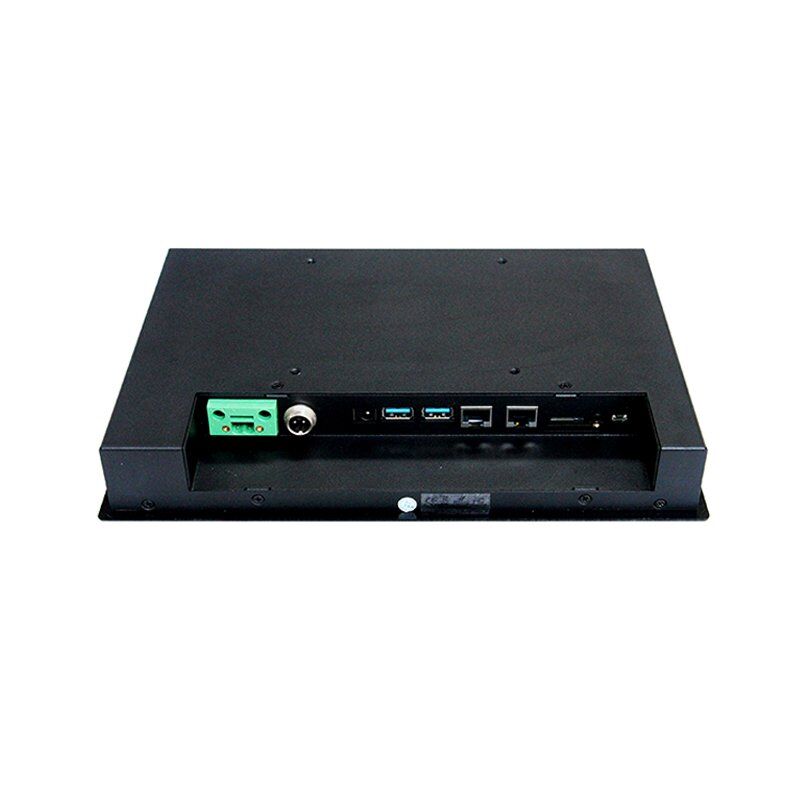

2xUSB, 1xHDMI, 1xRJ45, 1xTF, 1xSIM slot, 1xPhoenix Terminal, 1xDC Aviation Port, 1xWIFI, 1xBluetooth, 1xCard Reader module, 1xSpeaker

Module 1

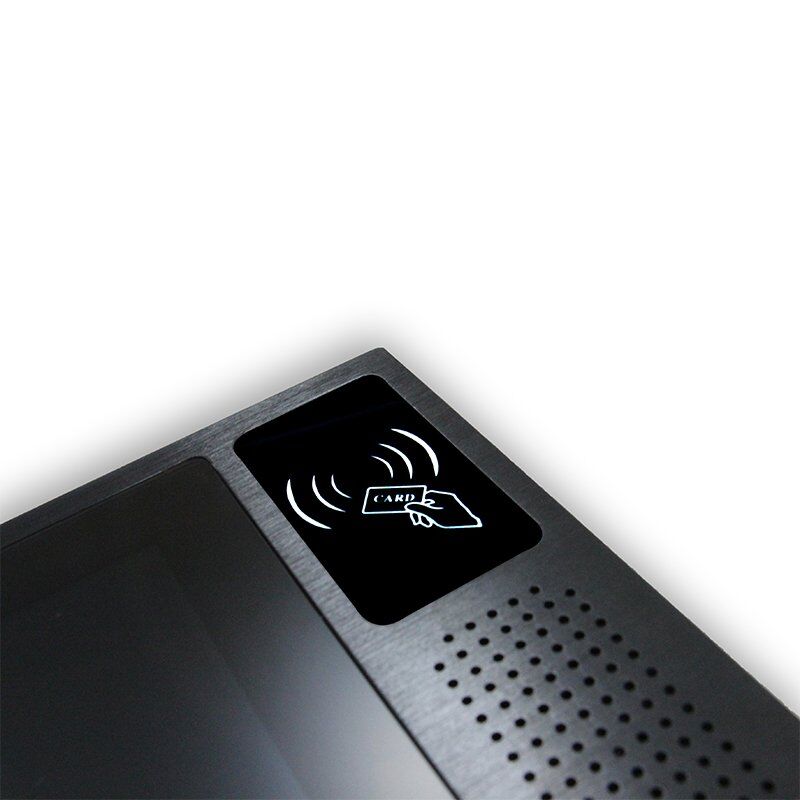

Card Reader

Power Supply

DC12V (DC24V, 9-36V Optional)

Operation System

Android 9.0, Android, Linux, Ubuntu, Debian, etc.

Mounting

75x75mm VESA, Metal Sheet, Open Frame Embedded

Application

Outdoor, Outdoor Dispenser, Outdoor Kiosk, SPA Locker Room

Warranty

1-Year Free Warranty

Production Lead Time

Sample: 20-35 Working Days; Bulk: 20 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery

Description

5-inch to 32-inch size range, Customization is welcome!

Touch Optional: No Touch or 5 Wires Resistive Touch or 10 Points Capacitive Touch.

What Differences Between Capacitive Touch and Resistive Touch?



Features:

● 1. Embedded Open Frame outdoor KIOSK design, rubber ring with drainage channels.
● 2. Adopt 10 points capacitive touch, high sensitivity, and fast-response, 3H Glass.
● 3. 1000 nits, sunlight-readable, with a light sensor for auto-dimming Optional.
● 4. Special design with NFC, wifi, 4g module, and Bluetooth, convenient for projects.
● 5. Wide temperature range: operating: -20°C to +70°C, storage: -30°C to 80°C.



Highlights:

Application: Outdoor or Outdoor KIOSK, Indoor SPA Locker Room, Humidity Environment.

1. (Optional) 1000nits high brightness: sunlight-readable.

What Is A Nit Of Screen Brightness And How Many Do You Need?

2. (Optional) Auto-dimming with light sensor: to protect your eyes when day and night.

3. Wide temperature -20℃ to +70℃, industrial-grade & high-performance.

What Features of Monitors for Outdoor Kiosk?

4. Optical bonding screen required if with capacitive touch.

What Is Optical Bonding of the TouchScreen Monitor?



Size Optional:

7″  8″ 10.1″ 10.4″ 12.1″ 13.3″ 15″  15.6″ 17″ 17.3″ 18.5″ 19″ 19″ wide 21.5″ 23.8″ 24″
1024*600 1024*768 1280*800 1024*768 1024*768 1280*800 1920*1080 1024*768 1920*1080 1280*1024  1920*1080 1280*1024  1440*900 1920*1080
16:9 4:3 16:10  4:3 4:3  16:10 16:9 4:3  16:9 4:3  16:9 4:3  16:10 16:9



CPU Optional:

      RK3288 Cortex-A17 quad-core,1.8GHz, fanless
      RK3399 Dual Cortex-A72+Quad Cortex-A53, 2.0GHz, fanless

How to Choose SCREEN for Outdoor or Semi-outdoor Application?

Additional information

CPU

RK3288 Cortex-A17 quad core,1.8GHz, fanless, RK3399 Cortex-A72 dual-core +A53 quad-core, 2.0GHz

RAM

2G/4G/8G

Memory

8G/16G/32G/64G

Size

8"

Resolution

1024*768

Touch Type

10 points capacitive touch

Glass

Optical Bonding

Brightness

1000nits high brightness, sunlight-readable, 350nits (cd/m²)

IP Grade

Front IP65 Waterproof

Material

Front Aluminum Alloy + Back High Strength Cold Rolled Steel Metal, Fanless

Temperature

-20℃ to 70℃

Interfaces

2xUSB, 1xHDMI, 1xRJ45, 1xTF, 1xSIM slot, 1xPhoenix Terminal, 1xDC Aviation Port, 1xWIFI, 1xBluetooth, 1xCard Reader module, 1xSpeaker

Module 1

Card Reader

Power Supply

DC12V (DC24V, 9-36V Optional)

Operation System

Android 9.0, Android, Linux, Ubuntu, Debian, etc.

Mounting

75x75mm VESA, Metal Sheet, Open Frame Embedded

Application

Outdoor, Outdoor Dispenser, Outdoor Kiosk, SPA Locker Room

Warranty

1-Year Free Warranty

Production Lead Time

Sample: 20-35 Working Days; Bulk: 20 Working Days

Shipping Lead Time

3-8 Working Days by USP/DHL/FEDEX/TNT/EMS/Air, Door to Door Delivery

Downloads

Acrobat Reader for PDFs Download from External Page
Specification / Datasheet Download Specification (PDF)
Manual Download manual (PDF)
eGTouch Drivers_v2.5.10206.L-x (Linux) X86 ( 32 64 bits ) Download TDL (RAR) | Online Rar to ZIP
eGTouch Drivers_v2.5.10206.L-ma (Linux) ARM MIPS Download TDL (RAR) | Online Rar to ZIP
eGalaxTouch Drivers_5.14.0.19810 (Windows) Download TDW (RAR) | Online Rar to ZIP
Touch Drivers (Android version 2.3.x upwards) Download TDA (RAR) | Online Rar to ZIP
WiFi driver Download WiFi (RAR) | Online Rar to ZIP



Size & Drawing
